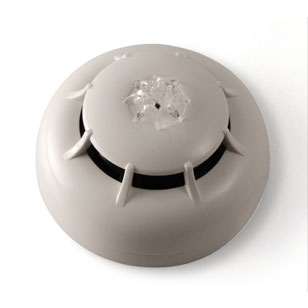

IRIS Smoke Detector

IRIS
Contact us for Availability and Price Quotation
Quantity
Name
Email
Phone
City
Address
Message
Anti-Spam Validation


Product Details

Iris series detectors maintain the ease-of-use of conventional detectors, yet are capable of providing a series of technical solutions that until today were provided by only the most sophisticated addressable analogue systems. As a result of advanced technologies based on new-generation microprocessors, these detectors implement a set of sophisticated algorithms capable of ensuring unequalled reliability and a high immunity to false alarms. The ground-breaking Versa++ technology incorporated in IRIS series detectors allows you to configure individual detectors to suit their specific environments and, when used in conjunction with the EITK1000 kit, to connect directly to the detector line for a complete diagnosis of each detector and thus test its operating capacity, verify its real-time values, view the contamination level in the optical smoke chamber and change its sensitivity and operating mode. Each detector has a non-volatile memory which allows you to view the smoke and temperature levels measured in the period prior to the last alarm detected. These detectors have passed - with flying colours - all the tests taken at the LPCB test facility, the prestigious English certification service.

Main Features

  • Newly designed optical chamber with sealed upper-part and 500 μm holes diameter mesh insect screen
  • Bicolour LED: Red for alarm; Green slow flash for standby (optional) and fast flash for trouble (fault or high level of contamination in the optical smoke chamber)
  • Drift compensation for sensor drift caused by dust in the chamber
  • Sensitivity selection for smoke and heat (by means of EDRV1000 driver)
  • Operating mode selection (by means of EDRV1000 driver for ID300 version): Only smoke; Only Heat; AND mode; OR mode; Plus mode
  • Complete Diagnostics: view the contamination level in the optical chamber and verify real-time values (by means of EDRV1000)
  • Memory of the smoke and temperature levels measured in the five-minute period prior to the last alarm detected
  • Vast range of options (selected by means of EDRV1000 driver)
  • Bypass plate on base guarantees continuity in the event of removal of the detector from the line

ID100 Optical smoke detector

The ID100 optical smoke detector is based on the Tyndall effect (diffusion of light) and provides first-rate early warning in the event of fire. It offers wide-spectrum detection of smoke particles generated by the majority of fires. The newly designed optical chamber with sealed upper-part and 500 μm holes diameter mesh insect screen ensure high immunity to false alarms. The sensitivity can be configured to suit a wide range of applications (sensitivity configurable as: 0.08dB/m; 0.10dB/m; 0.12dB/m; 0.15dB/m).

ID200 Heat detector

The response characteristics of the ID200 heat detector have been carefully set in A1R mode (fixed threshold at 58C with thermovelocimetric detection). However, it can be set (by means of EDRV1000 driver) to operate in B mode (fixed threshold at 72C); in A2S mode (fixed threshold at 58C); in BR mode (fixed threshold at 72C with thermovelocimetric detection). As a result of such flexibility, this detector is useful in places where the environment is dusty or smoky and the risk of false alarms is high.

ID300 Smoke and Heat detector

The ID300 smoke and heat detector has new smoke and temperature sensing technologies. As a result, this improved â\\\\\\\"reliability detector responds well to all types of fires (especially to fast burning blazing fires involving inflammable liquids, which produce a limited amount of smoke) and is highly immune to false alarms. The ID300 can be set to the sensitivity mode which best suits the application (by means of EDRV1000 driver)
